Building Smarter Systems: MCC Labels Industrial Network Installation

Building Smarter Systems: MCC Labels Industrial Network Installation

Project Overview

Client: MCC Labels
Location: Cardiff
Date:
MCC Labels Cardiff needed a strong, reliable network to run their new production platform, EFI Auto-Count. This system captures real-time data—such as press speeds, machine status, and performance—directly from the shop floor, helping the team make faster, smarter decisions based on live insights. For the platform to function seamlessly, MCC required a high-performance infrastructure that could support uninterrupted data transfer, integrate with industrial control systems, and withstand the physical demands of a busy production floor. To meet this need, Twisted Pair Technologies delivered a tailored, end-to-end industrial network installation. We installed 56 shielded Cat6FTP network points, with four connections at each press station. These were fitted with durable metal back boxes and faceplates, selected specifically for industrial resilience. To support connectivity between separate areas, we also installed 150 metres of OM4 8-core fibre optic cable, providing fast, reliable links between the main office cabinet and a remote production cabinet. In addition, we carried out a low voltage power installation, running seven screened 4-core cables from the DMI controllers to the printing presses. These links were essential for connecting sensors mounted on the rotating shafts of the presses—providing EFI Auto-Count with accurate, machine-level data in real time. All copper and fibre connections were tested using calibrated Fluke equipment, including the DSX5000 and CertiFiber Pro. The industrial network installation was delivered safely during active production hours and completed ahead of schedule and within budget.

The Challenge and Solution

Implementing EFI Auto-Count meant more than just installing a new piece of software—it required a resilient and purpose-built infrastructure to support constant data flow across the shop floor. The production environment brought unique challenges, from operating heavy machinery to ensuring safety and uptime.

Key requirements included:

  • High-speed copper cabling to each press station
  • A fibre optic backbone to link remote network cabinets
  • Power cabling to support sensors and controllers
  • Minimal disruption to ongoing operations



Industrial network Installation

All works needed to be carried out while MCC’s production lines remained active, with a strong emphasis on safety, coordination with site engineers, and adherence to strict timelines.

To deliver a stable and scalable setup for EFI Auto-Count, we deployed a complete industrial network installation across three main components:

Cat6FTP Network Installation: We installed 56 shielded Cat6FTP Excel network points, assigning four ports per press to serve PCs and printers at each end station. This allowed for direct data collection and control through the Auto-Count system.

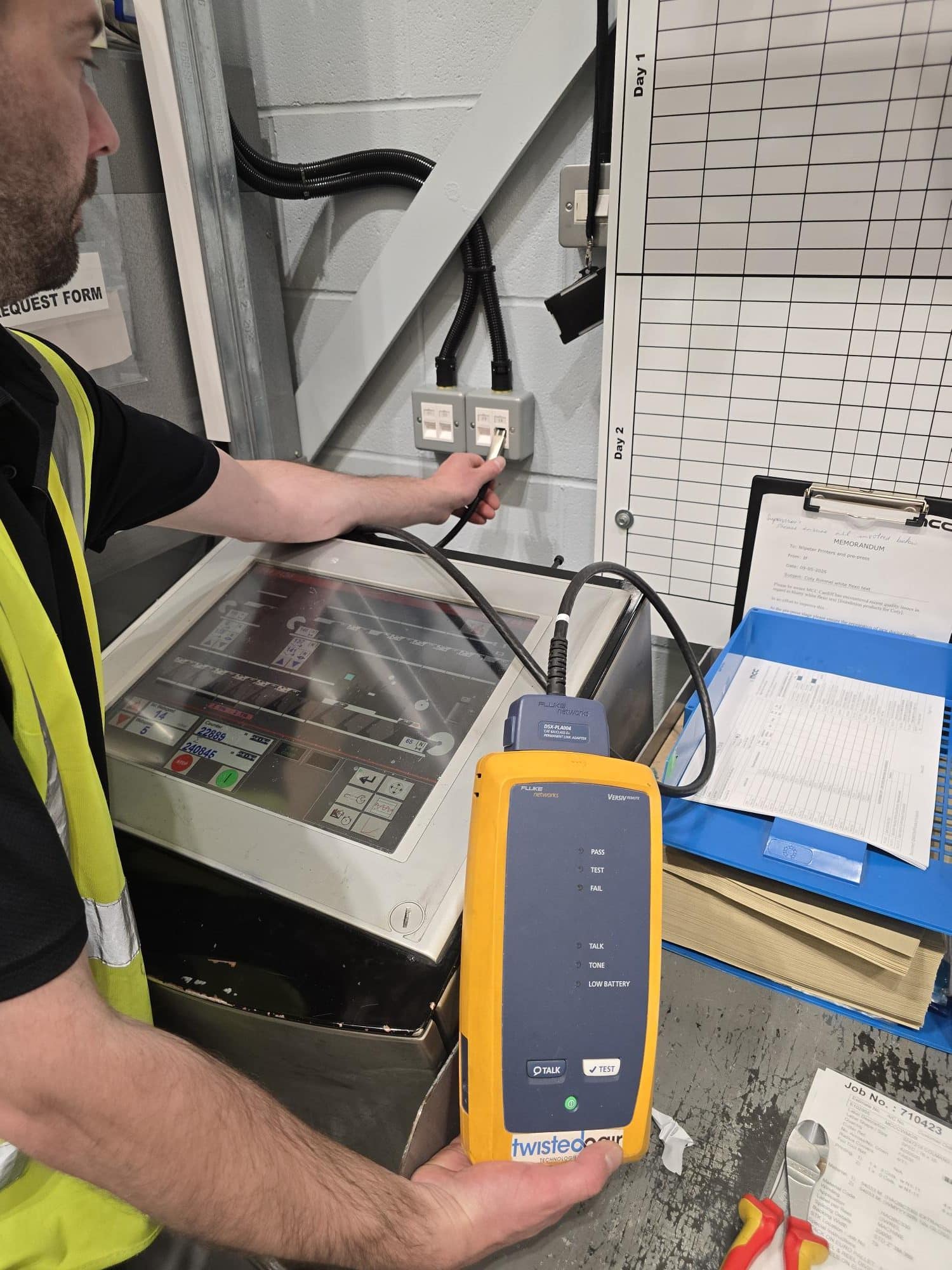

To ensure long-term durability, especially in an industrial setting, all points were fitted with metal MK surface-mounted back boxes and faceplates. Each copper cable was professionally tested with a Fluke DSX5000, and full test reports were shared with the client.

OM4 Fibre Optic Backbone: To create fast and stable connections between MCC’s main office area and the production floor, we laid a 150-metre run of OM4 8-core fibre.

All fibre cores were fusion spliced for minimal signal loss and tested using the Fluke CertiFiber Pro. This backbone ensures that data collected from presses is transmitted without delay to central systems.

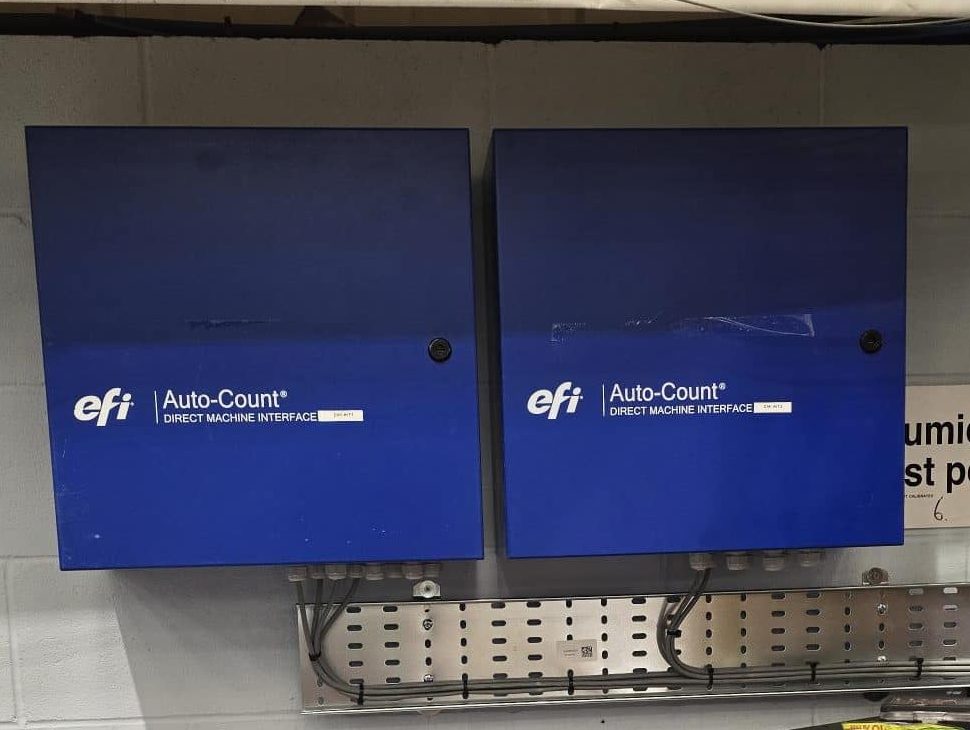

Low Voltage Power Installation: To integrate EFI Auto-Count’s data-gathering features with physical press sensors, we installed seven 1.0mm 4-core screened low voltage power cables from the DMI controllers to each press. These cables were carefully routed to connect with shaft-mounted sensors, which provide real-time input on machine activity.

MCC’s engineering team handled final terminations, allowing seamless handover between cabling and control hardware.

Safety & Delivery

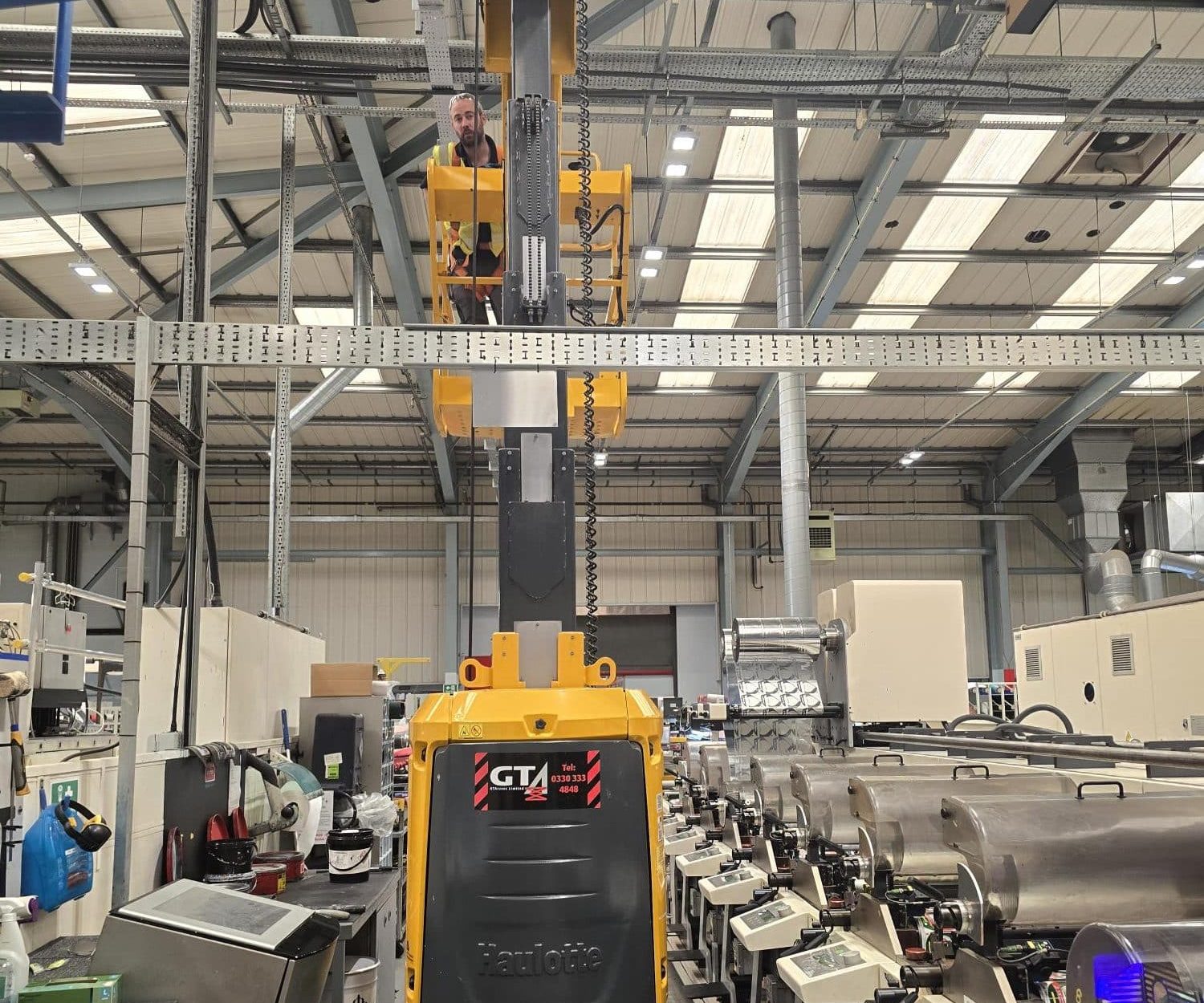

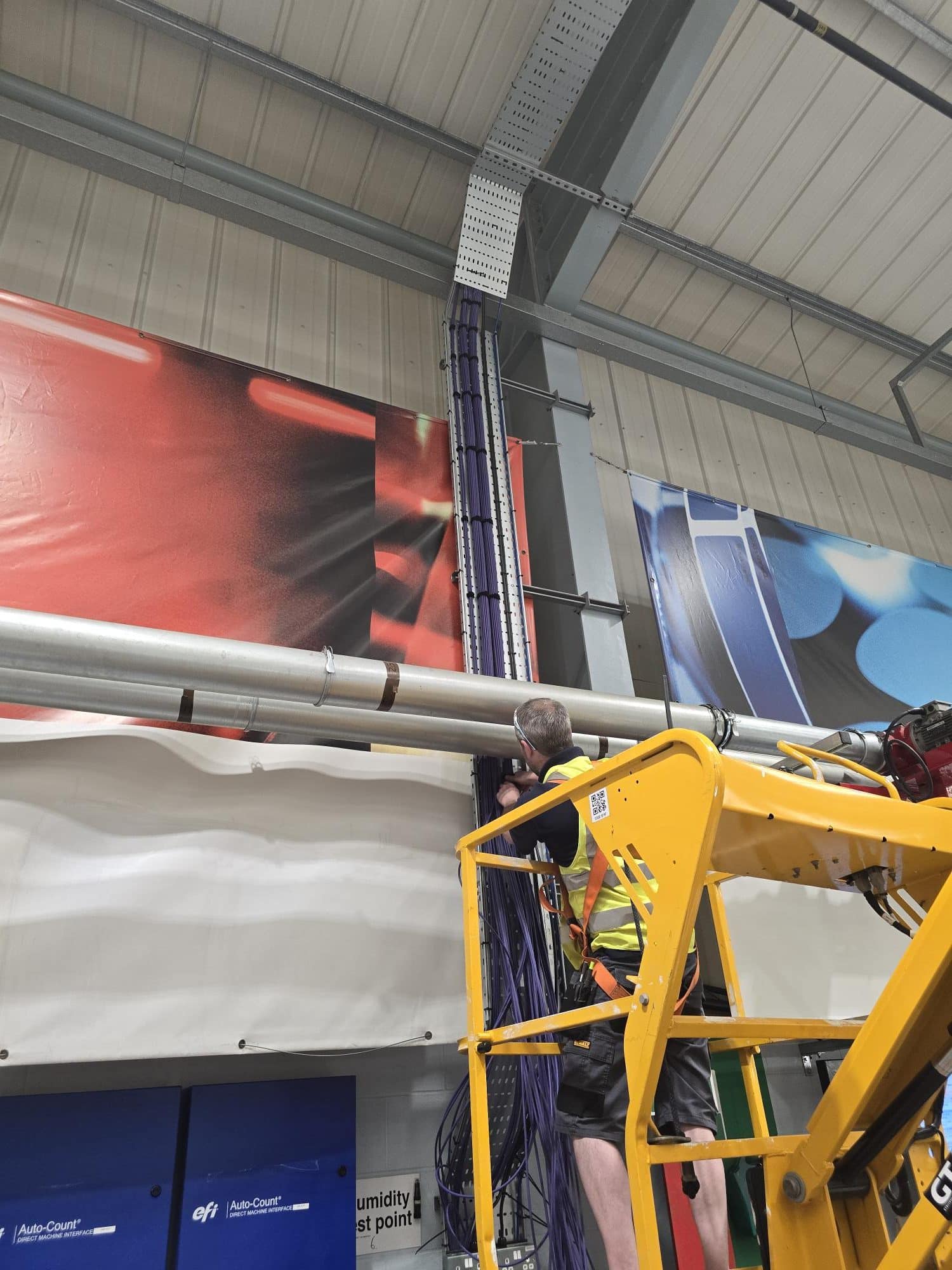

 One of the standout aspects of this industrial network installation was our ability to complete the work during live production hours. We coordinated closely with MCC’s site staff to maintain safe working zones, avoid interference with machinery, and keep operations running smoothly throughout the installation. Our team followed strict health and safety protocols while maintaining an efficient timeline.

Thanks to clear planning and constant communication, we completed the entire installation ahead of schedule and within budget—all without downtime for MCC.

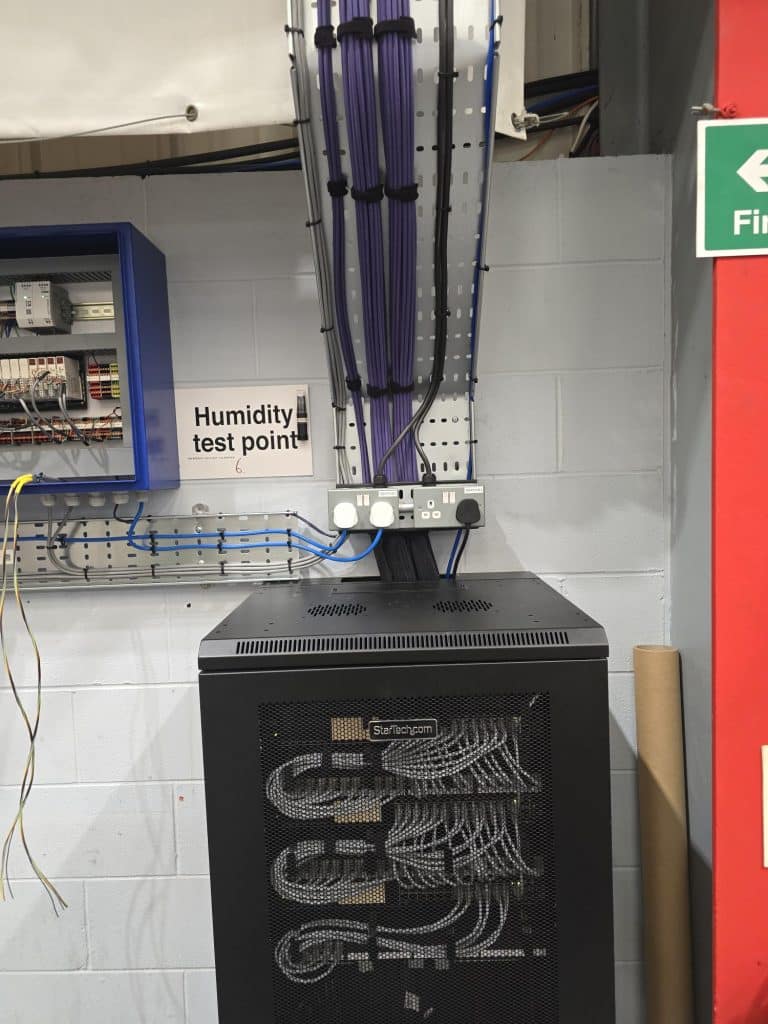

Network Testing Cable management   Industrial Network Installation

The Result

MCC Labels Cardiff now operates with a future-proof infrastructure that supports real-time monitoring, data-driven decision-making, and system scalability. The new setup ensures that EFI Auto-Count performs to its full potential—capturing precise data directly from the presses, linking seamlessly with the production network, and helping MCC enhance productivity across the board.

From cleaner installations to reliable performance and fully tested cabling, the result reflects our commitment to quality and long-term value.

What This Industrial Network Installation Shows

This project highlights how well-executed network design and quality installation can transform industrial operations. By combining data cabling, fibre connectivity, and low voltage power into a unified infrastructure, MCC is now equipped for smarter, more efficient production.

Ready to Future-Proof Your Facility?

 At Twisted Pair Technologies, we help businesses like MCC build reliable, high-performance networks tailored to the demands of modern industry. Whether you’re installing fibre, upgrading copper, or rolling out smart systems, we’ve got the expertise to deliver.

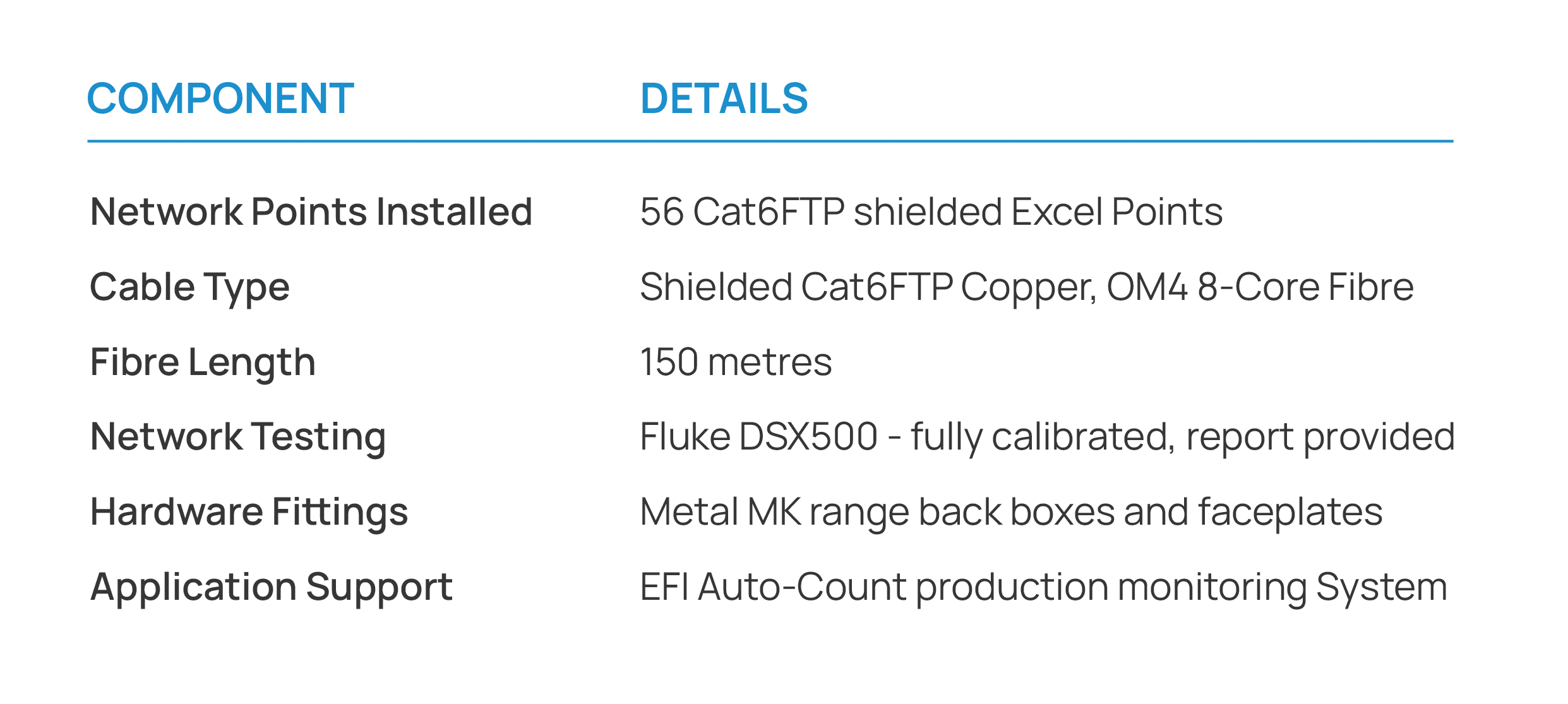

Key Accomplishments

  • Fully operational installation during live production
  • Completed ahead of schedule and within budget
  • 56 Cat6FTP network points installed
  • 150m OM4 fibre optic backbone deployed
  • Low voltage power cabling integrated
